Nylon Conveyor Belt Roller Accessories Bearing

In the underground conveyor equipment system, Nylon Cage Bearing is frequently used to prevent sparking between the bearing cage and the rolling spare parts. Nylon bushings exhibit low friction and require no lubrication. Nylon is quiet in operation, resists abrasion, wears at a low rate, and is easily molded, cast, or machined to close tolerances. Ball Bearing for mining conveyor usually use reinforced cage and large clearance C3/C4, with nylon cage suffix such as KA or TN/TNG/TNGH. The material of nylon is reinforced polyamide 66, it is an good material due to its high elasticity, minimal weight and excellent running properties, prevent static electricity effectively, and have good anti seizeing properties.

Clearance:

Select the large internal clearance (ie. C3, C4) here is very important. It compensates for Shaft deflections. conveyor bearings cannot use standard bearings, they will cause big running resistance, brake and reduce lifetime of bearing. And the material of nylon cage must be pure and has enough toughness and strength, because the cage will get very soft if it is made of bad material or mixed material, thus to make no anti-stuck performance within the bearing. To get safety certificate for coal mining products must use nylon cage bearing.

XKTE - Ball Bearings and Rolling Bearings in Conveyor Technology

XKTE is the specialist in rolling bearing technology for the mechanical application of continuous conveyors.

Special: Our KA(Nylon retainer) series bearings Obtained MA certification, safety certificate of approval for mining products (rollers) in China. With good performance of anti-seize and anti-static.

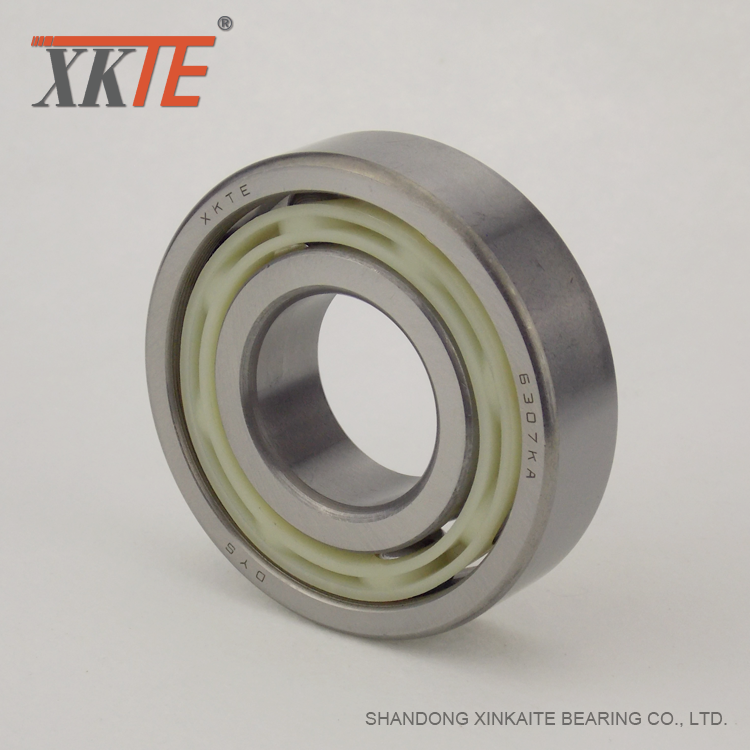

KA Series Type Nylon Bearing:Open Type and One Side Seal Type

*Open Type

*One side seal type

TN9 Series Nylon Bearing with glass fiber

Design Characteristic:

1. reinforced nylon retainer, it has good low noise properties and better sliding characteristics

2. very good corrosion resistance

3. a wide temperature range

4. Product tested by National Coal Science Institute and Provincial Quality Inspection Center. mining standard in China.

5. Good toughness and strength, good anti-seize performance, constantly used in dusty environment and underground environment.

The design of Ductile crown structure of retainer can effectively remove stuck dust objects

Super Finished Surface Technology

Dimensions such as the outer and inner diameters and the width are ground to micrometer (one-thousandth of a millimeter) precision, as is the groove, a key internal structure formed between the inner and outer rings in which balls run.

Thicker Inner & Outer Ring

The ring is the main part and the important part of the Idler Roller Bearing. Best idler Roller Bearing has deep groove ball, and large clearance. But deep groove doesn`t mean to dig the channel with a simple way of enlarge the steel ball. The thickness of the bearing is certain, so to get the ball big and the groove deep will shorten service life. Our XKTE bearing uses way of thickening ring to get the standard of deep groove and large clearance, improves the anti-stuck performance, and effectively increases the service life.

Other Main Products for idler:

6200/6300 series Deep Groove Ball Bearing

6200/6300 series is well suited for low to heavy radial loads and can be configured for various application speeds and running precision requirements. Reinforced iron Retainer, Super-finished deep groove, smooth race, thicker inner and outer ring.

6200/6300 Series Deep Groove Ball Bearing
Model	Bore Size(mm)	Outer Diameter(mm)	High(mm)	Weight(kg)	ball no.	Cr(kN)	Cor(kN)
6204	20	47	14	0.106	8	12.8	6.65
6205	25	52	15	0.128	9	14	7.85
6305	25	62	17	0.232	7	20.6	11.3
6306	30	72	19	0.346	8	26.7	15
6307	35	80	21	0.457	8	33.4	19.3
6308	40	90	23	0.639	8	40.8	24
6309	45	100	25	0.837	8	52.8	31.8
6310	50	110	27	1.082	8	61.8	38
Material Chrome Steel GCr15

Types:

Nylon cage bearing: 6204KA---6308KA 6204KA/C3---6308KA/C3 6204KA/C4---6308KA/C4

Rubber Sealed bearing: 6204-2RS/RS---6310-2RS 6204-2RZ---6310-2RZ 180204---180308

Shielded Ball Bearing: 60204---60310 6204KA-Z---6308KA-Z 6204TN-Z---6308TN-Z 6204ZZ---6310ZZ

Unique Design Anti-seizeing Nylon Retainer Deep Groove Ball Bearing For Conveyor components, Such as Troughing Idler, Comb Idler , Impact Idler , Return Idler , Guide Idler , Spiral Idler , Transition Idler, Flat Self-Aligning Idler etc.

Our Service:

1. Volume production and large Inventories, stable quality

2. OEM is supported

3. Small order accept

4. Various Brands

5. Wide Array of Applications

6. Fast delivery

7. Our company insists on the "quality first, credit first" business ideas and our product specification is well-founded. We have a good reputation in the international market by our perfect service and sufficient supply.

About US:

Shandong Xinkaite Bearing Co., Ltd. is a professional belt Conveyor Roller Bearing manufacturer enterprise, specialized in manufacturing bearings for the bulk material handling industry. our bearings are being used in multiple applications including: mining machinery, carrying idlers and reverse rollers as well as drum pulley. Our factory is located in Yandian of Liaocheng in mainland China, covered an area of 18,000 square meters, registered trademarks "XKTE".

To be the first class, to do the best quality, to make users satisfied, to ensure customers relieved, are our enterprise purposes. Welcome bearing dealers` and Conveyor Idler manufacturers contact from all over the world, and become our partner.

Packing:

Looking for ideal Nylon Conveyor Belt Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Conveyor Belt Roller Accessories are quality guaranteed. We are China Origin Factory of Conveyor Roller Accessories Bearing. If you have any question, please feel free to contact us.

Product Categories : Conveyor Bearing > Conveyor Idler Roller Bearing
